The 20 sqft radiant floor heating kit is the go-to for small bathrooms and mudrooms, but the biggest mistake is treating underfloor heat like a one-size-fits-all add-on. Buy the wrong layout or skip the membrane and you’ll face cold spots, lumpy tile work, or worse, a circuit that trips at the first chill.

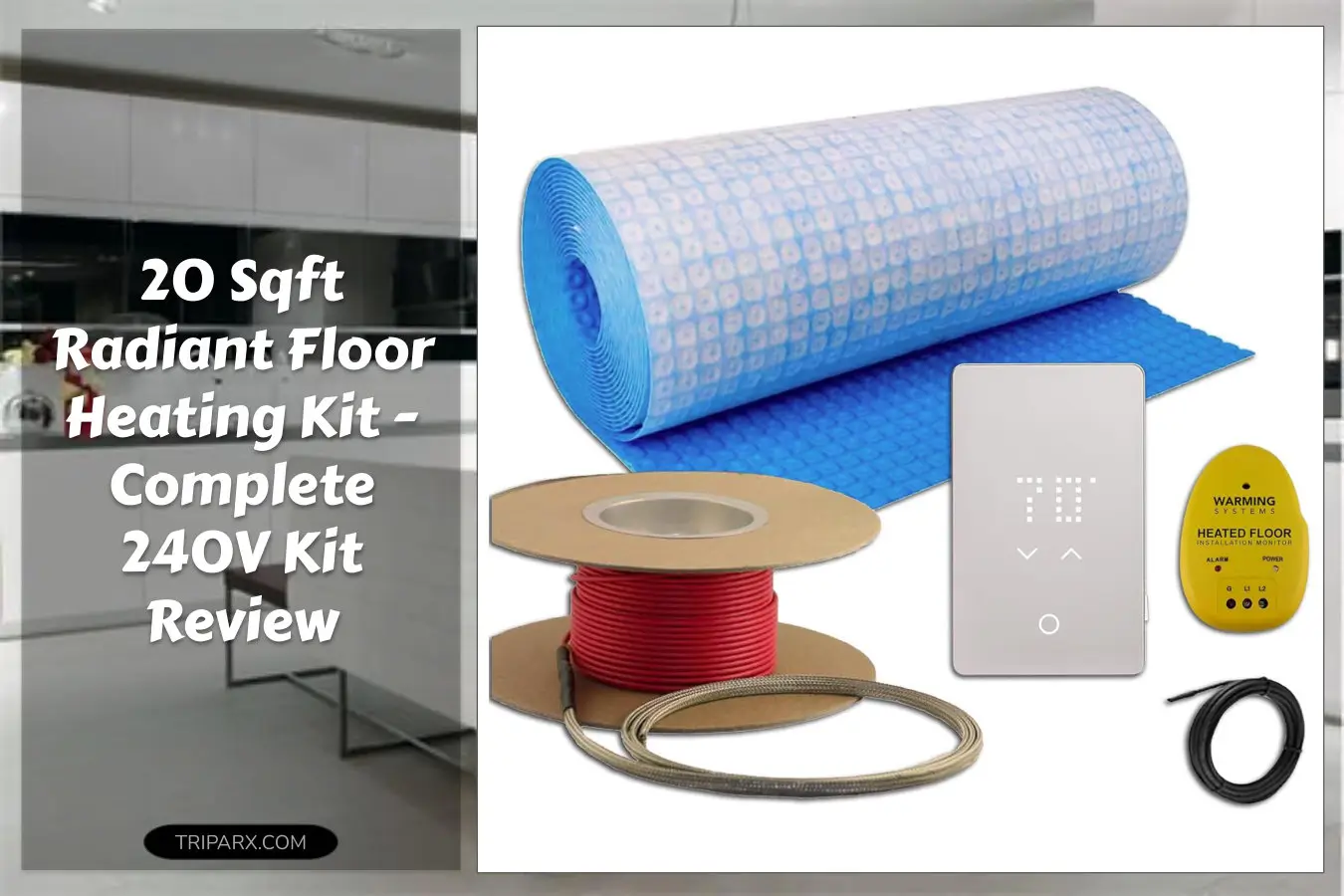

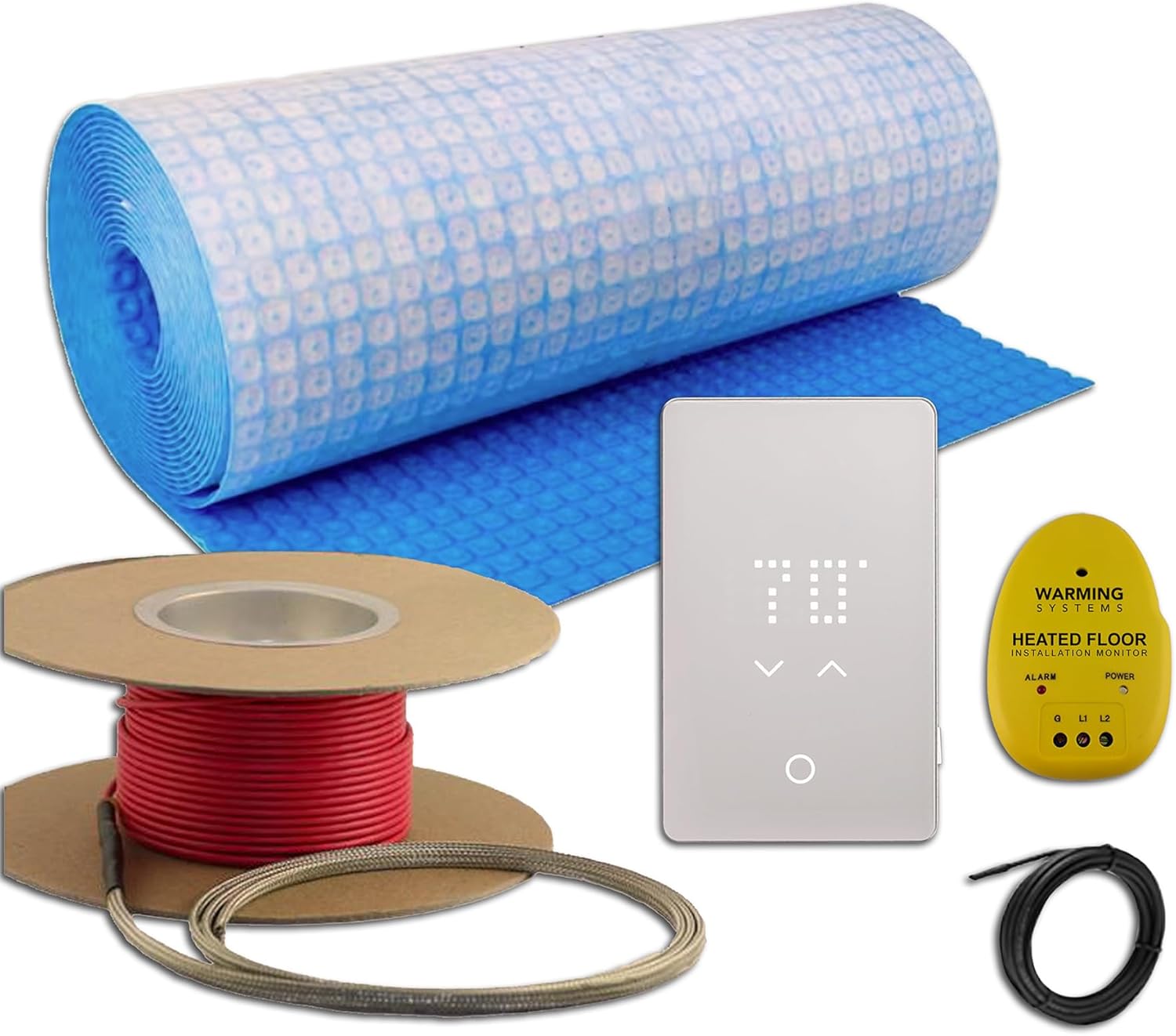

This kit bundles 80 linear feet of heating cable, a 40 sqft uncoupling heat membrane, a WiFi LED programmable thermostat with underfloor sensor, and an installation warning monitor to catch wire damage during installation. Want to know if it fits your floor plan and skill set?
Key Features & Real-World Use
- Complete 20 sqft cable kit – 80 linear feet of heating cable designed to warm a 20 square foot zone for tile or stone installations.
- Uncoupling heat membrane – a 40 sqft membrane that simplifies layout, protects cable, and helps prevent tile cracking when paired with thinset mortar.
- WiFi LED programmable thermostat – model UWG5-4999 includes an underfloor temperature sensor, touch interface, scheduling and remote control for energy-efficient operation.
- 120/240V, 16 Amp rating – supports standard residential circuits; compatible with common 240V setups but plan for proper circuit sizing or an electrician if unsure.
- Installation warning monitor – alarm during install flags damaged wire so you don’t bury a faulty cable under tile.
This combination of heating cable, uncoupling membrane, thermostat, and monitor covers materials and safety needs for tile and stone floors, and plays well with thin subfloors and cement backer boards.
Is It Right for You?
If you have a small bathroom, shower bench, powder room, or a targeted kitchen zone under tile or thin-set stone, this 20 sqft kit is a practical fit. It’s ideal when you want faster warm-up, even heat distribution, and remote scheduling via WiFi for mornings and evenings.
Not the best choice if you plan plush carpeting, thick floating wood floors, or need whole-house heating. Also, a hardwired 240V connection and a 16 Amp circuit call for an electrician if you’re not comfortable with electrical work.
How to Choose – Quick Criteria
- Coverage area – match kit square footage to your floor plan; this kit covers ~20 sq ft, so measure carefully and allow for fixtures.
- Voltage and amperage – confirm your circuit can support 240V and 16 Amps; trade-off is faster, steadier heat versus the need for proper wiring.
- Thermostat features – WiFi and an underfloor sensor give accurate control and scheduling; look for programmable presets and LED touch feedback.
- Membrane and tile compatibility – choose uncoupling membranes for tile to reduce risk of cracks and to simplify thinset application.
- Installation safety – an installation warning monitor is a small upfront cost that prevents buried damage and rework.
From Box to Daily Use
- Measure and plan the layout so the 80 linear feet of cable covers the 20 sqft zone without crossing fixtures.
- Run the installation warning monitor to test cable integrity before you fix anything in place.
- Lay the uncoupling membrane over the subfloor, embed the heating cable into the membrane channels, and secure per instructions.
- Connect the underfloor sensor to the WiFi LED thermostat and wire the thermostat to the 120/240V feed with proper grounding.
- Apply thinset and tile or stone over the membrane, allow cures, then power up and program schedules for energy-efficient warmth.
Buyer Doubts Solved
Worried about DIY? This kit is packaged for a competent DIYer, but electrical hookup for 240V should be handled by a licensed electrician if you’re unsure.
Will it raise the floor height? The membrane is low profile; expect minimal change compared with plywood, tile backer, or cement board.
Energy cost concerns? Programmable WiFi thermostats let you heat on demand and use sensor-based control to reduce wasted energy.
What if the cable is damaged? The installation warning monitor alerts you during install so repairs are made before tiling – much better than finding out later.
Compatibility with flooring? Best for tile and stone. For laminate or engineered wood, check manufacturer guidelines and use thin-set compatible membranes.
Ready for quiet, even warmth underfoot? This 20 sqft radiant floor heating kit pairs a tested heating cable, uncoupling membrane, WiFi thermostat, and an installation monitor to reduce risk and speed installation.
